Contextual menus are lists of commands that are based on the context of a selection, mouse hover or keyboard focus. They are one of the most effective and highly used command surfaces, and can be used in a variety of places.

Usage ---

Menu

When to use

  • If users need to perform several actions on a content
  • If the actions are not used on a daily basis
  • If there is one action only, use button or link instead

Best practices

  • Analyze what actions are most important. Order the actions accordingly.
  • Group similar actions.
  • Move less important actions to a submenu.
  • Keep disabled actions visible.
  • Do not use more than 2 submenus in a nested way.
  • Do not have a long and flat list of actions, which might not have space on a small screen.

Design ---

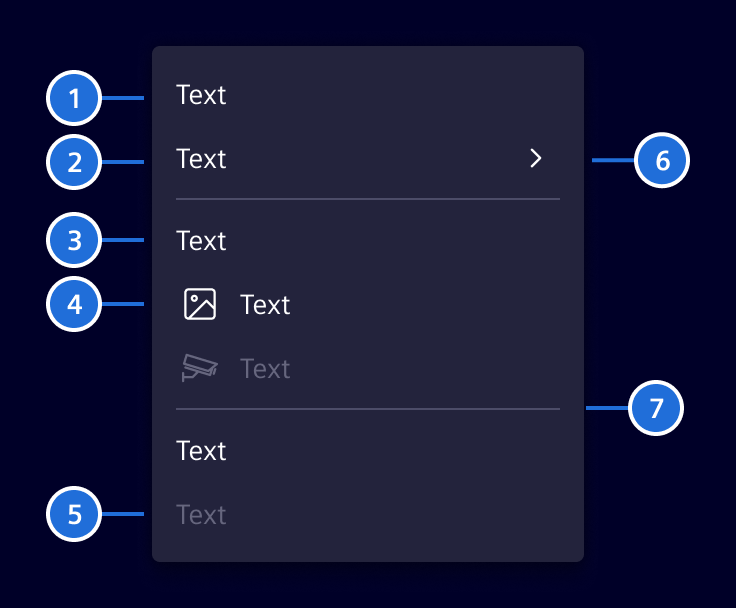

Elements

Elements

(1) Hover state, (2) Entry with submenu, (3) Header, (4) Entry menu with icon, (5) Disabled state, (6) Indication for submenu, (7) Divider

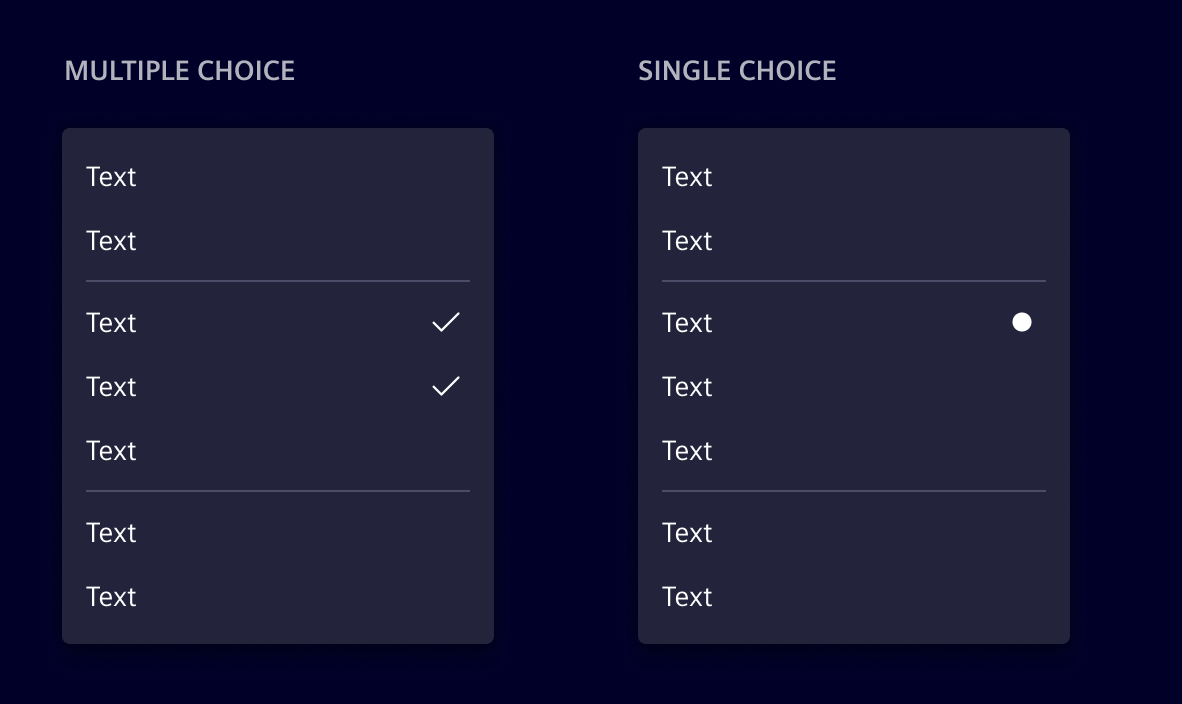

Alternatives

Alternatives

  • Single choice should be used if the user has to select one of the options only. Make sure, that the options are grouped correctly.
  • Multi choice can be used, if the user can enable or disable some functionality over the menu.

Code ---

Important API changes

With Element v45, the si-menu has been completely re-implemented to feature a declarative API style based on the CDK Menu. If you are migrating from the old si-menu-legacy, you might want to consider using the si-menu-factory, which provides a more compatible model-driven API.

The si-menu has a declarative API and an additional si-menu-factory which accepts MenuItem[]. It is built around the CDK Menu using Angular's hostDirective feature. Due to this:

  • CdkMenuTrigger is required to open the menu
  • CdkMenuItem can be used directly if proper styling is applied (helpful for special use cases)

Usage of the declarative API

Usage of the factory API

si-menu-bar

The si-menu-bar is a horizontal menu that is based on the CdkMenuBar.

While being visually similar to the si-content-action-bar it has two differences:

  • si-menu-bar has a declarative API
  • si-menu-bar has no responsive behavior

In general, we recommend using the si-content-action-bar over the si-menu-bar.
