List dashboard widget

List dashboard widget provides a quick-glance overview of list items, offering users a shortcut to view and access key information directly.

Usage ---

The List Dashboard Widget is used for presenting lists in a compact format, allowing users to scan and interact with items quickly. It optionally allows search and sorting. It can include:

  • Brief descriptions to provide context.
  • Links for direct navigation.
  • Actionable items for quick task initiation.

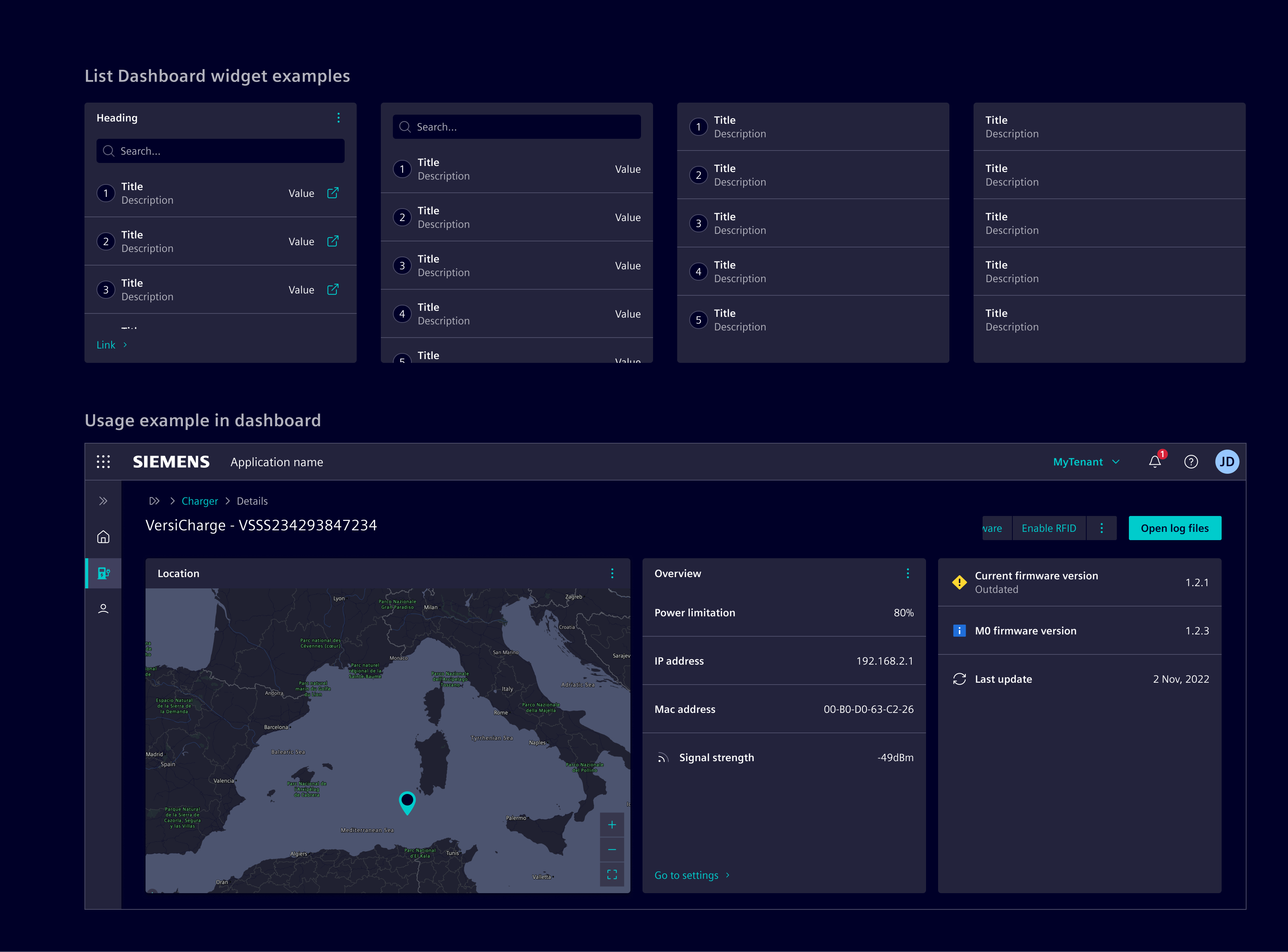

List dashboard widget

When to use

  • In dashboards and tile layouts.
  • To provide a ranked or organized list of items.
  • When users need quick access to key information without navigating away.
  • To summarize essential metrics, statuses, or items at a glance.
  • When displaying frequently updated data in a compact format.

Best practices

  • Prioritize relevant information.
  • Limit additional elements (e.g., badges or actions) to avoid visual clutter and improve readability.
  • Enable sorting and search for lists with more than a few items to simplify navigation.
  • Use empty state to represent empty values.

Design ---

Elements

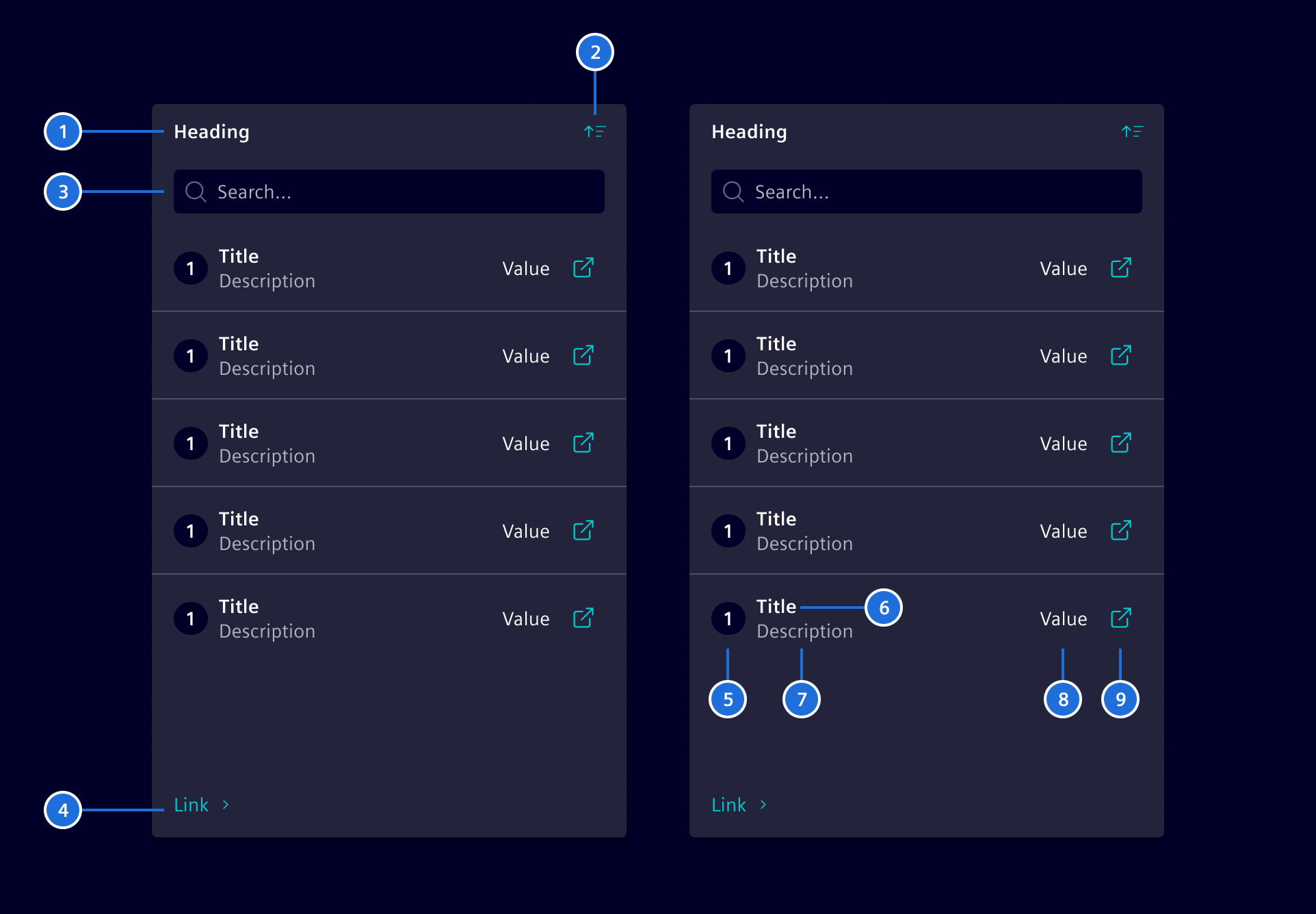

List dashboard widget elements

  1. Heading, 2. Action, 3. Search, 4. Footer link, 5. Indicator, 6. Row title, 7. Description, 8. Value, 9. Row action

With the exception of the Row title (6), all items are optional.

Variants

Each item can display a title or a link, with an optional description.

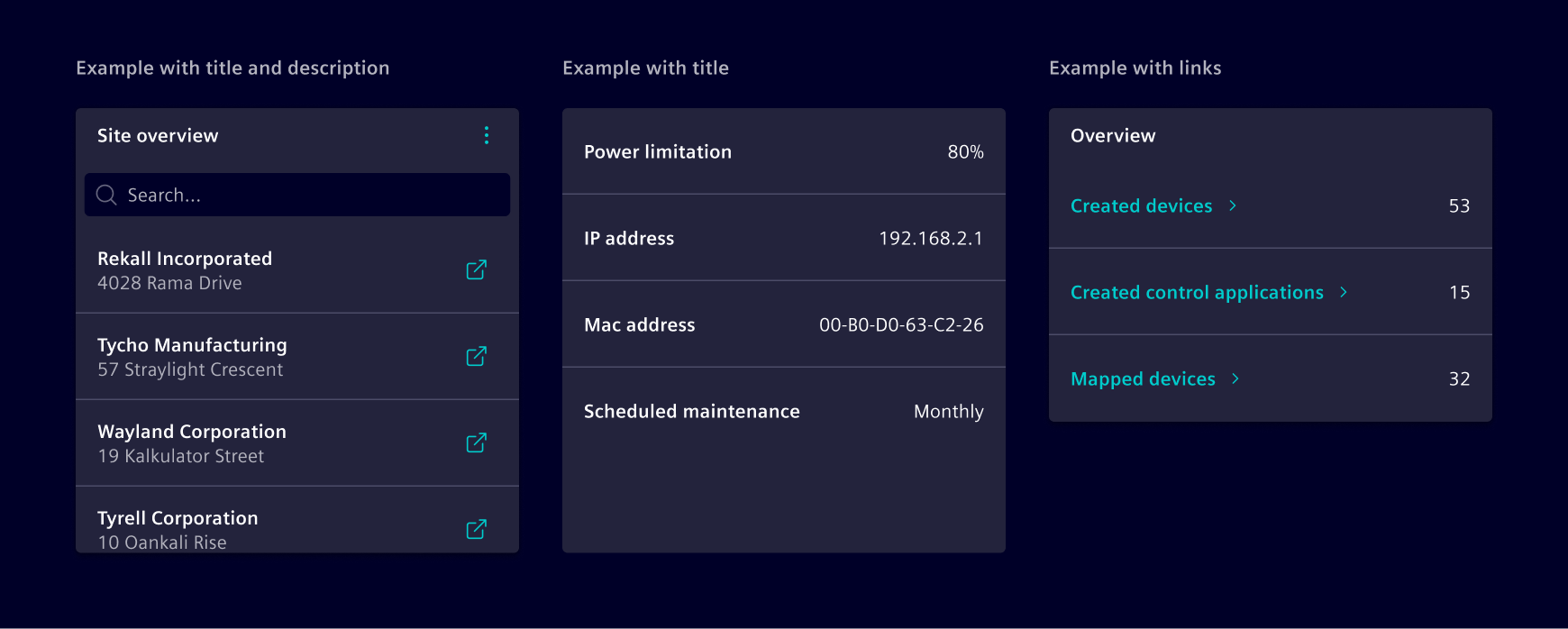

List dashboard widget title examples

The indicator can be customized to show an icon, status or a badge.

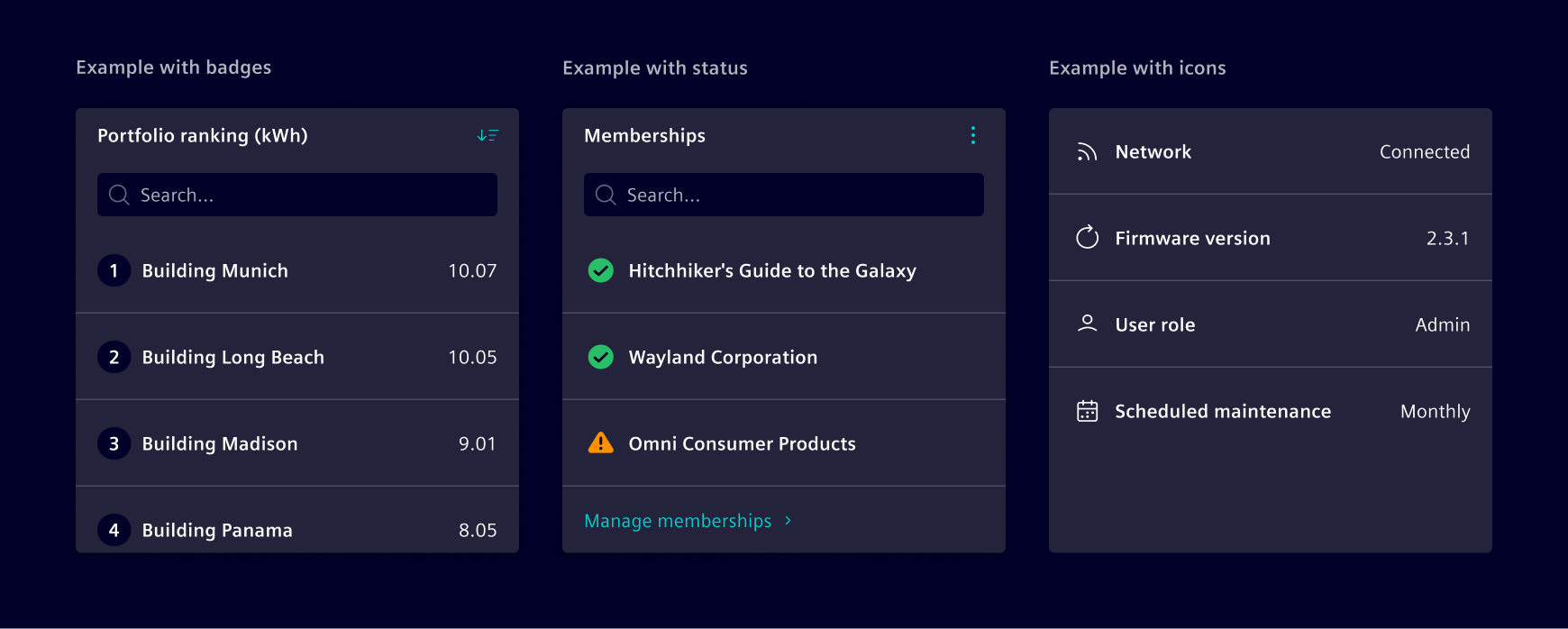

List dashboard widget indicator examples

The header action supports sorting items and other actions as needed. Content overflow is managed with an internal scrollbar, and the widget height can be configured to either full or fixed height according to layout needs.

This component is flexible enough to accommodate additional options, allowing for tailored solutions.

Code ---

We support the the list widget in two ways:

  • Angular components that are configured by data objects to support minimum effort on the application development.
  • HTML and CSS-based to support maximum flexibility.

List widget component

To simplify the usage and reduce the code, Element offers a Angular component as wrapper with streamlined inputs. The component is a wrapper around the card and the <si-list-widget-body>.

import { SiListWidgetComponent } from '@siemens/element-ng/dashboard';

@Component({
  :
  imports: [SiListWidgetComponent],
  standalone: true
})

Add the empty state component by content projection with the empty-state slot.

<si-list-widget search [heading]="'Heading'" [value]="items">
    <si-empty-state empty-state [icon]="'element-info'" [heading]="'No buildings found.'" />
</si-list-widget>

List widget body component

The body of the <si-list-widget> is implemented in the component <si-list-widget-body>. You can use it for compositions.

CSS class usage

For more flexibility and control, use the CSS classes directly in the <si-card> component.
