File uploader¶

The file uploader component allows users to upload one or more files, such as images, documents or firmware. It shows the upload progress as well as a success/error status after an upload finishes.

Usage ---¶

The file uploader allows to upload file-based content. They are typically integrated in forms but can also be used in a standalone fashion.

Users can upload files by dragging and dropping them into the designated drop area. Alternatively, users can also use a browser's/OS' native file selection dialog by clicking the upload link within the drop zone.

Design ---¶

Elements¶

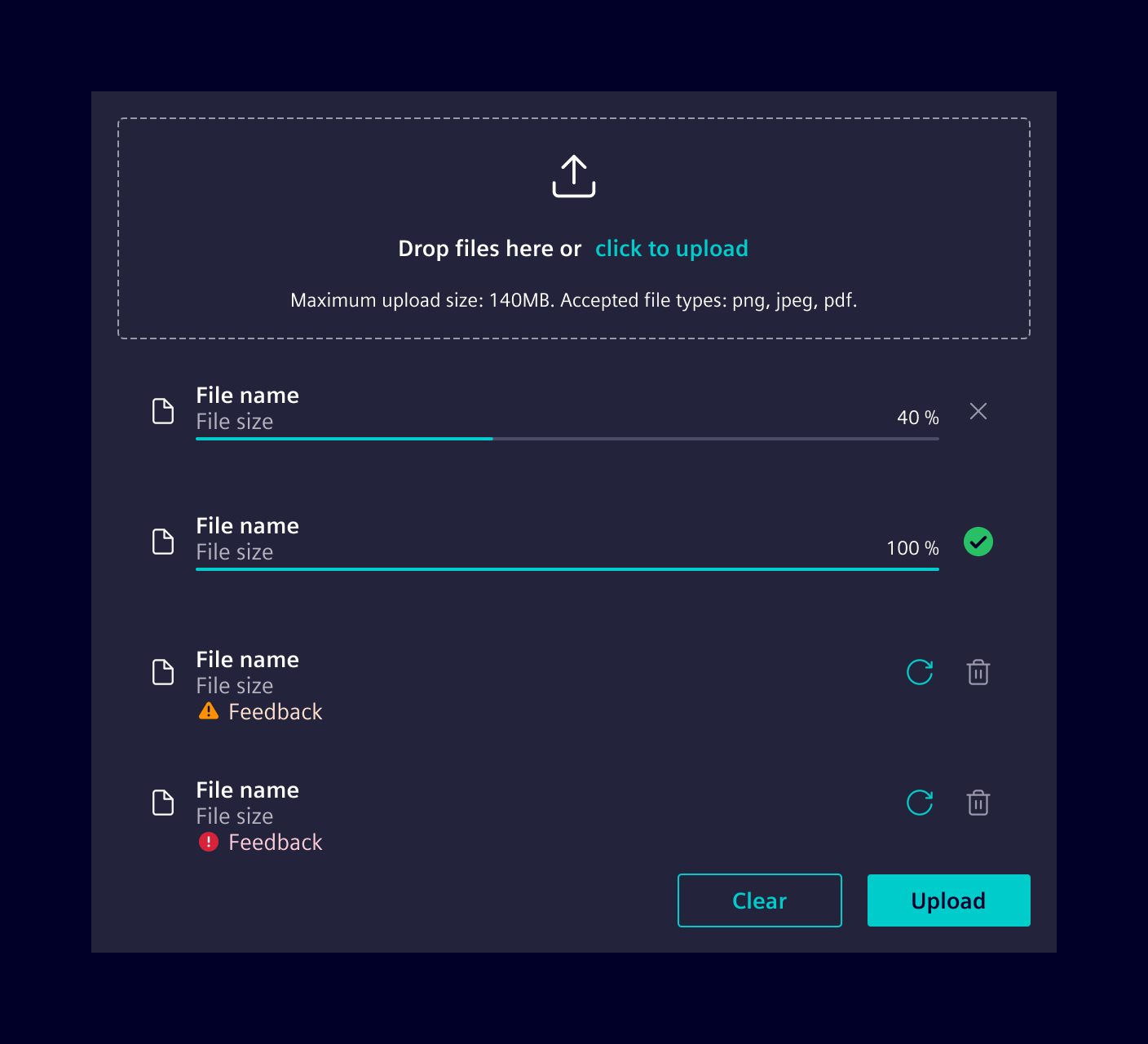

1. File selector/drop zone, 2. File upload progress, 3. Cancel file upload button, 4. Upload issue feedback, 5. Upload successful icon , 6. Retry button, 7. Delete file button, 8. Actions (optional)

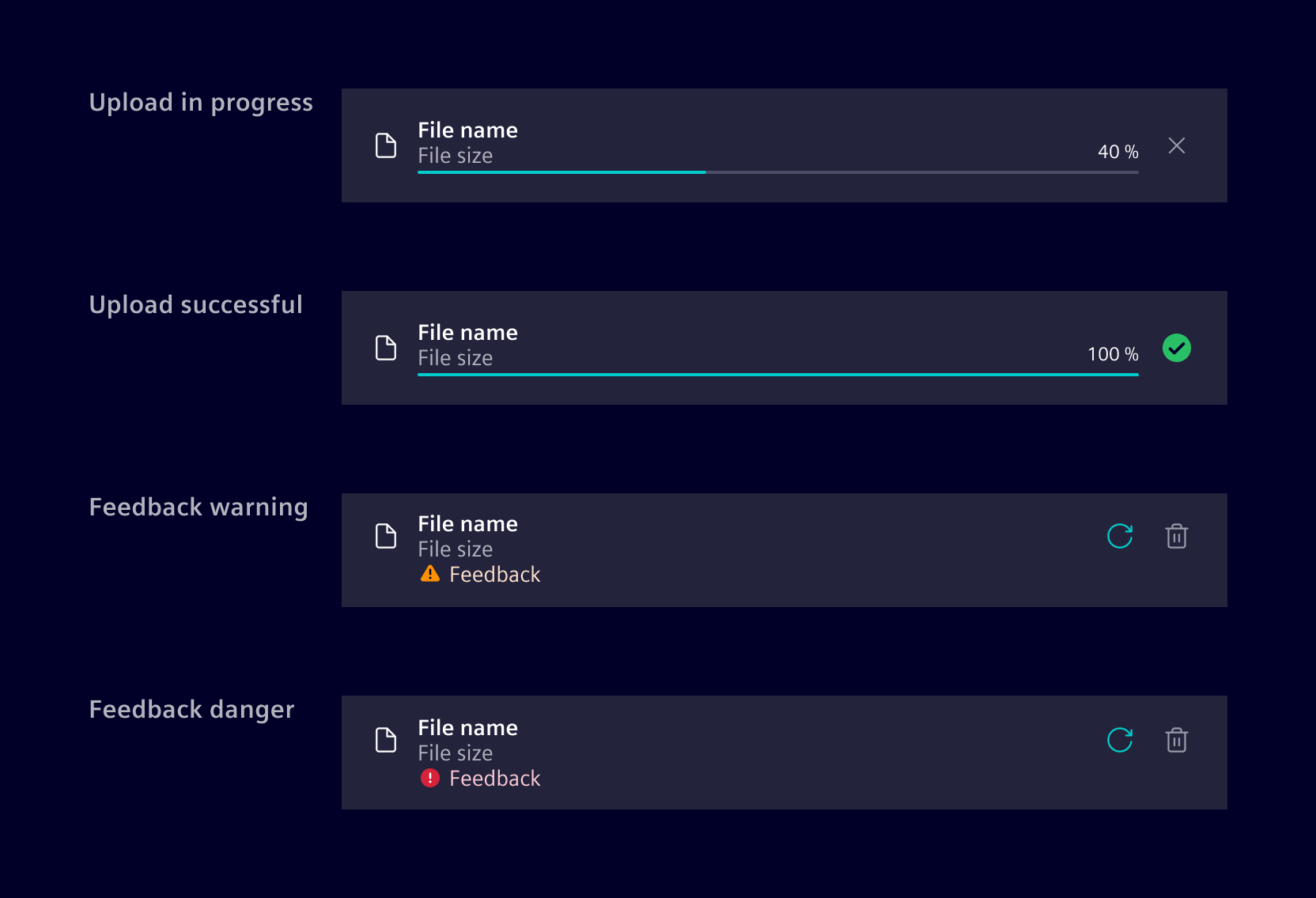

Upload states¶

Variants¶

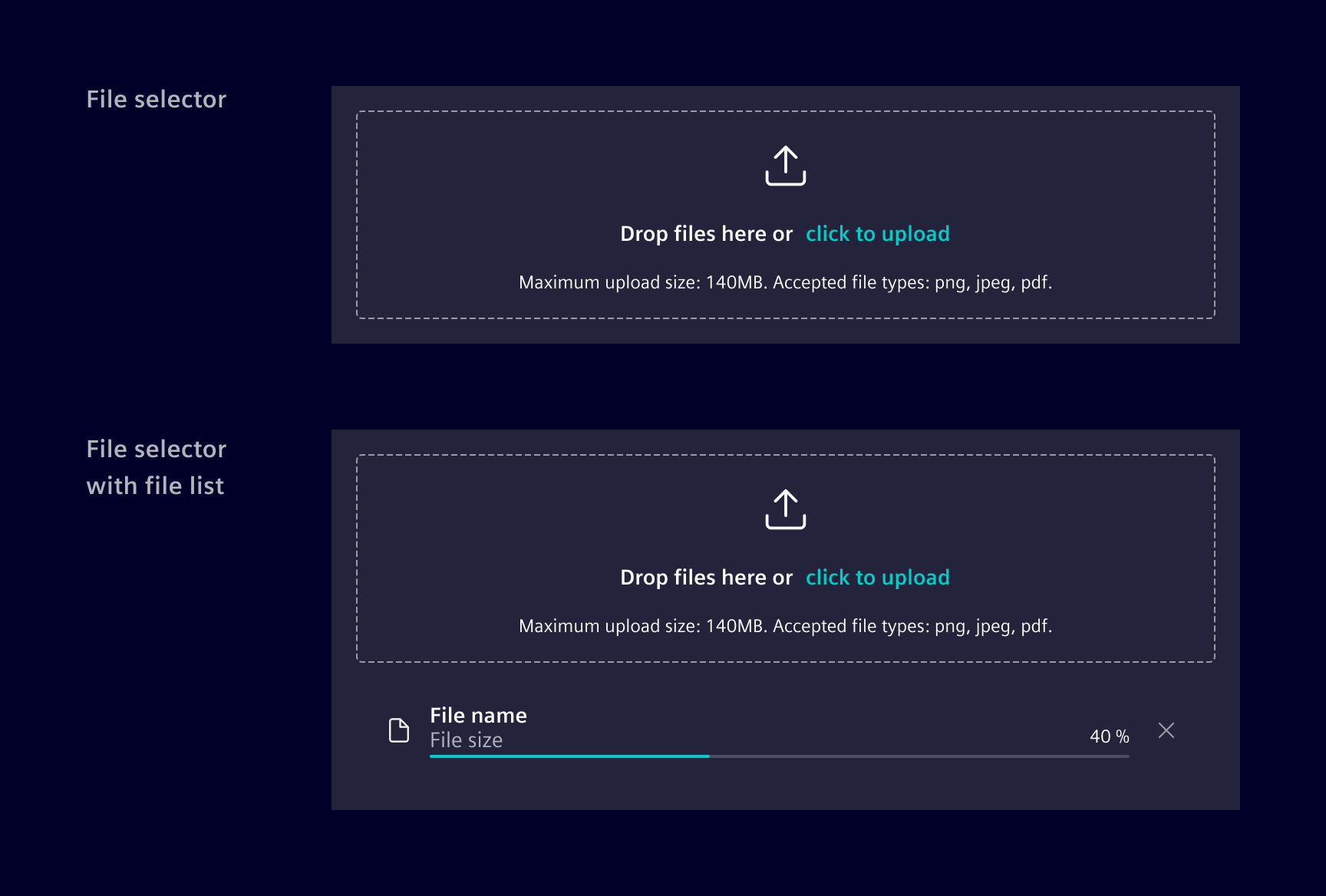

The file uploader is available in two variants, either as just the file selector alone without any status or interaction controls or as the complete variant with file list and all other state management handling.

The component can be set to either a fixed height or it supports a dynamically growing one to accommodate a longer list of uploaded files. When set to a fix height, the additional files might be hidden and users have to scroll to see them.

Code ---¶

This component can be used to upload a file. Either via file browser or using drag and drop. It also shows you if the upload was successful or has failed. In the case that it was successful, you will be provided with the output emitter uploadFinished.

Usage¶

import { SiFileUploaderComponent } from '@siemens/element-ng/file-uploader';

@Component({
  imports: [SiFileUploaderComponent, ...]
})

It's also possible to have only the file selector / drop zone part without the file list.
