Number input¶

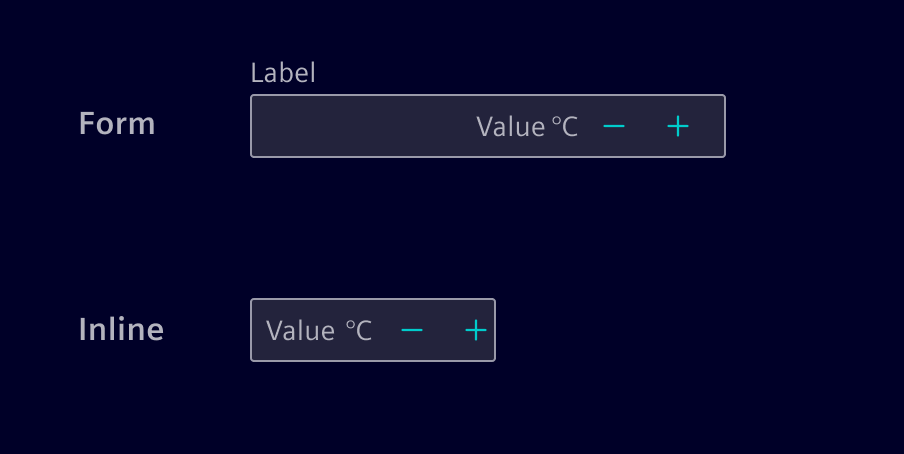

The number input allows users to enter and modify a numeric value with an optional unit.

Usage ---¶

The component includes + / - controls to increment or decrement the value in predefined steps. It acts as a high-level alternative to the native number input control.

When to use¶

• To enter a numeric value in a form or inline in a component.
• When a user needs precise control over a numeric value.

Best practices¶

• Define the width of the number input field according to the maximum value and the grid system.
• Offer a smart default value whenever possible.
• When precision is not important, use a slider instead.

Design ---¶

Elements¶

1. Label (optional), 2. Container, 3. Content, 4. Unit (optional), 5. Controls (optional)

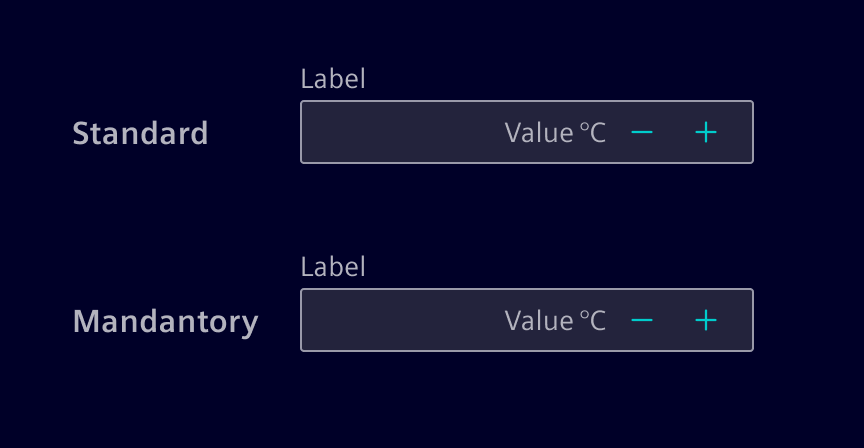

Label (optional)¶

Effective form labeling helps users understand what information to enter.

• Provide a short and concise label that is shorter than the input field itself.
• A mandatory field is marked with an *-asterisk.
• Labels can be placed above or left to the input.

Controls (optional)¶

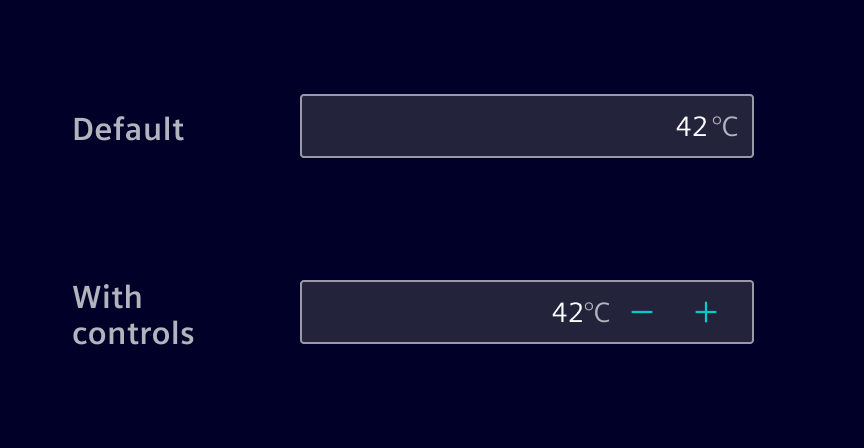

The number input can contain controls to increment or decrement the value.

It is possible to set the step size. E.g. in a range of 0..10'000, a step size of 10 is more appropriate.

Interaction states¶

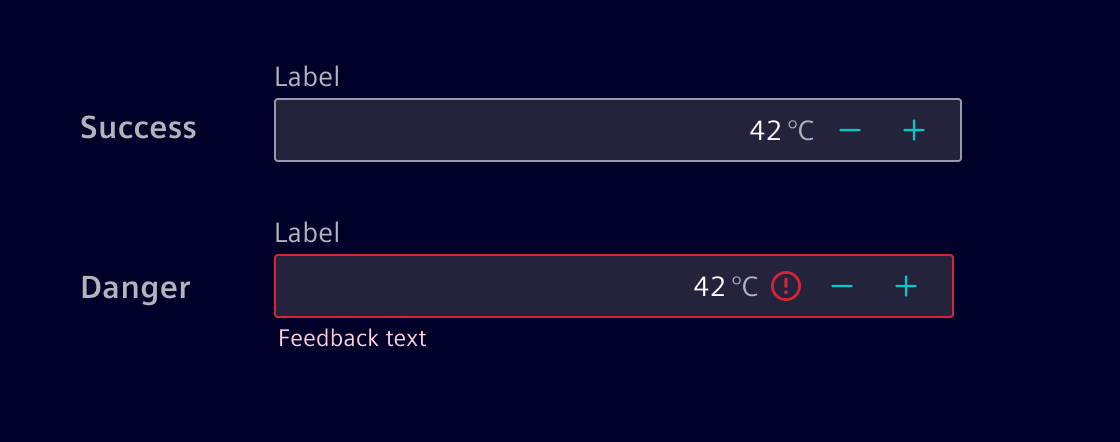

Validation¶

Real-time validation ensures that the data being entered is within a specific range or follows certain rules, preventing errors and ensuring the integrity of the data.

Code ---¶

A drop-in replacement for the HTML <input type="number">. It has more accessible increment decrement buttons and can show a unit.

Usage¶

import { SiNumberInputComponent } from '@siemens/element-ng/number-input';

@Component({
  imports: [SiNumberInputComponent, ...]
})
