Pills input¶

Pills input allows users to enter multiple items, such as tags or email addresses, into a single input field.

Usage ---¶

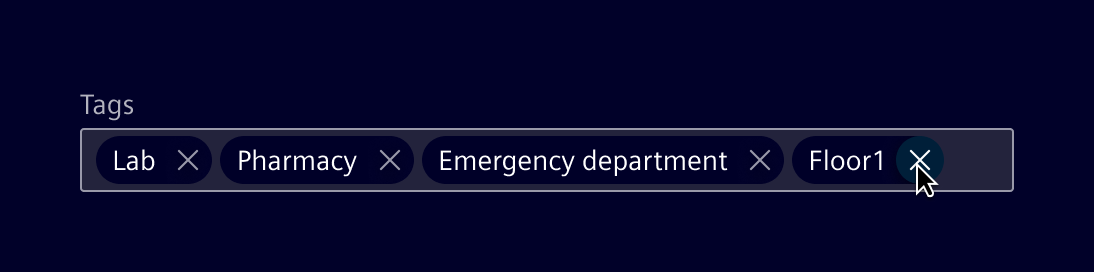

Pill Input is a control that lets users enter text, transforming each entry into a distinct "pill". A new entry is added when the Enter key is pressed or when separated by commas or semicolons. Existing pills can be deleted as needed.

When to use¶

• To add tags to categorize content, making it easier for users to classify and find items based on keywords.
• To enter email addresses or names, allowing users to easily add or remove recipients.
• For selecting multiple options from a wide range of choices.

Best practices¶

• Guide users with examples in the placeholder, like "Enter tags, separated by commas."
• If needed, set a maximum number of pills to keep the interface clean.
• Offer autocomplete suggestions as required.
• Provide validation when necessary.

Design ---¶

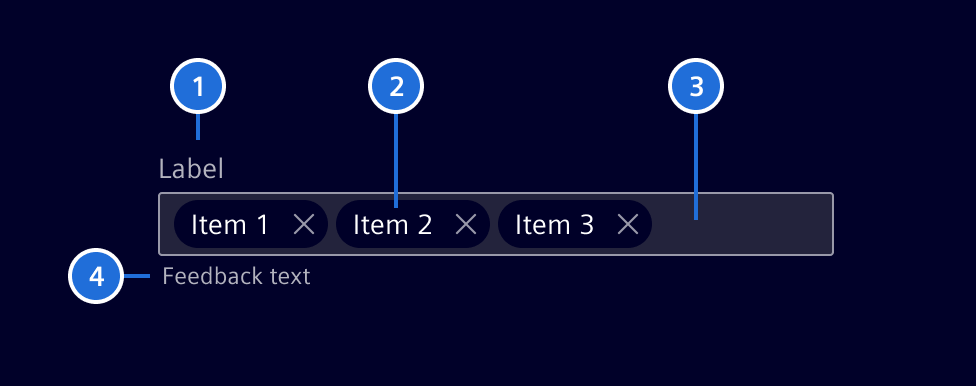

Elements¶

1. Label (optional), 2. Pills, 3. Container, 4. Message (optional)

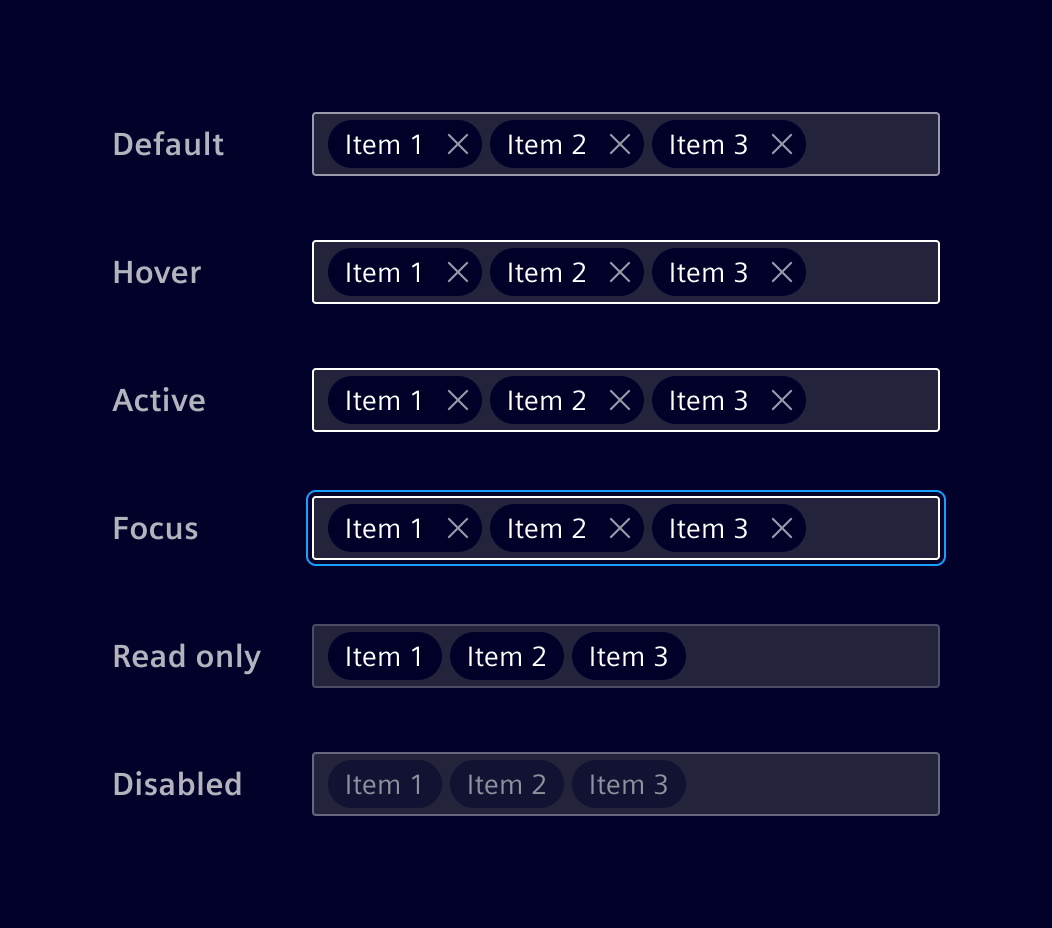

Interaction states¶

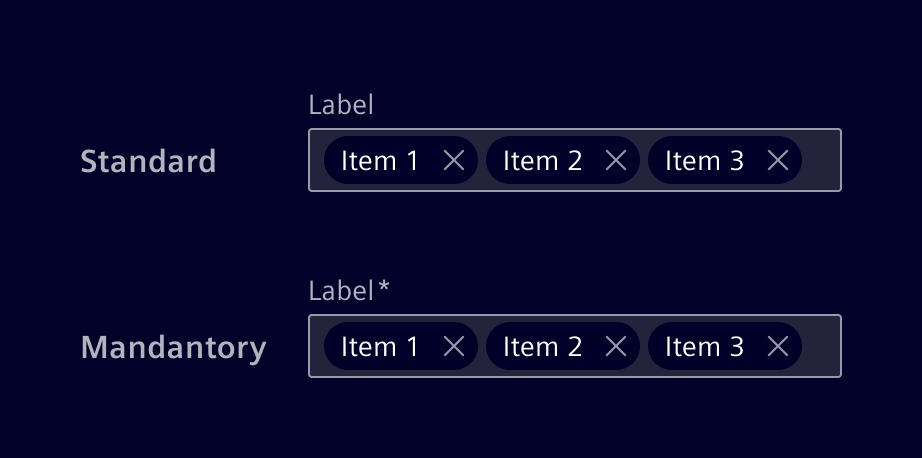

Label (optional)¶

Effective labeling helps users understand what information to enter.

• Keep labels short and clear (should not be wider than the input field).
• Mandatory fields are marked with an *-asterisk.
• Labels can be placed on top of fields or to the left (in RTL languages). Prefer top placement of labels, since it provides a consistent left edge alignment, improving scannability.

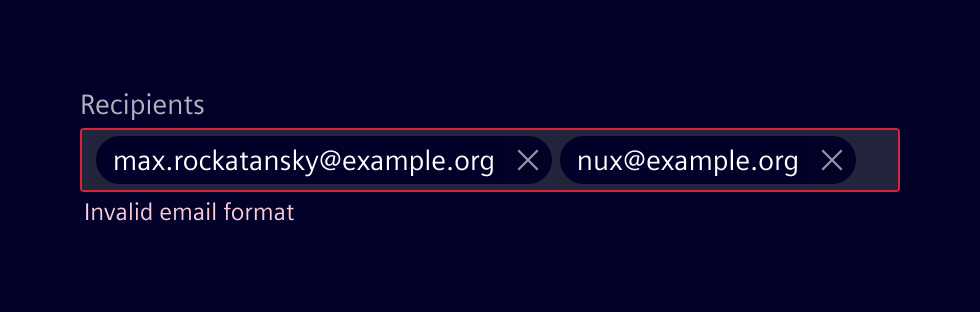

Validation¶

Real-time validation can be implemented to ensure that entered text meets specific criteria.

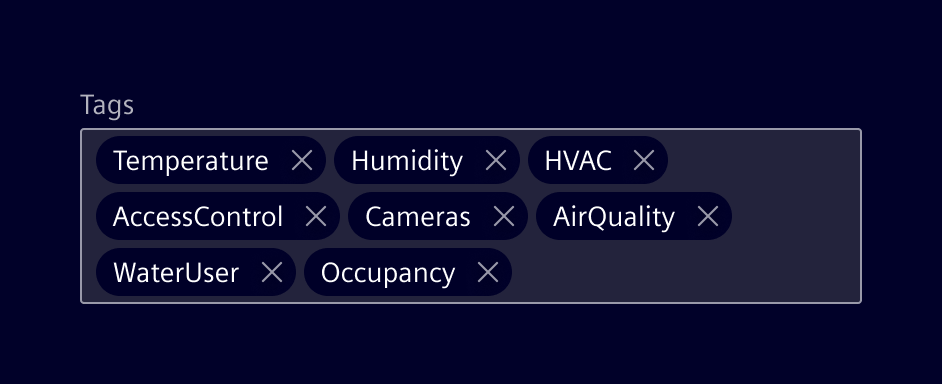

Responsive behavior¶

When space is limited, pills are stacked to ensure adaptability across various screen sizes.

Code ---¶

Usage¶

import { SiPillsInputComponent } from '@siemens/element-ng/pills-input';

@Component({
  imports: [SiPillsInputComponent, ...]
})
