Modals¶

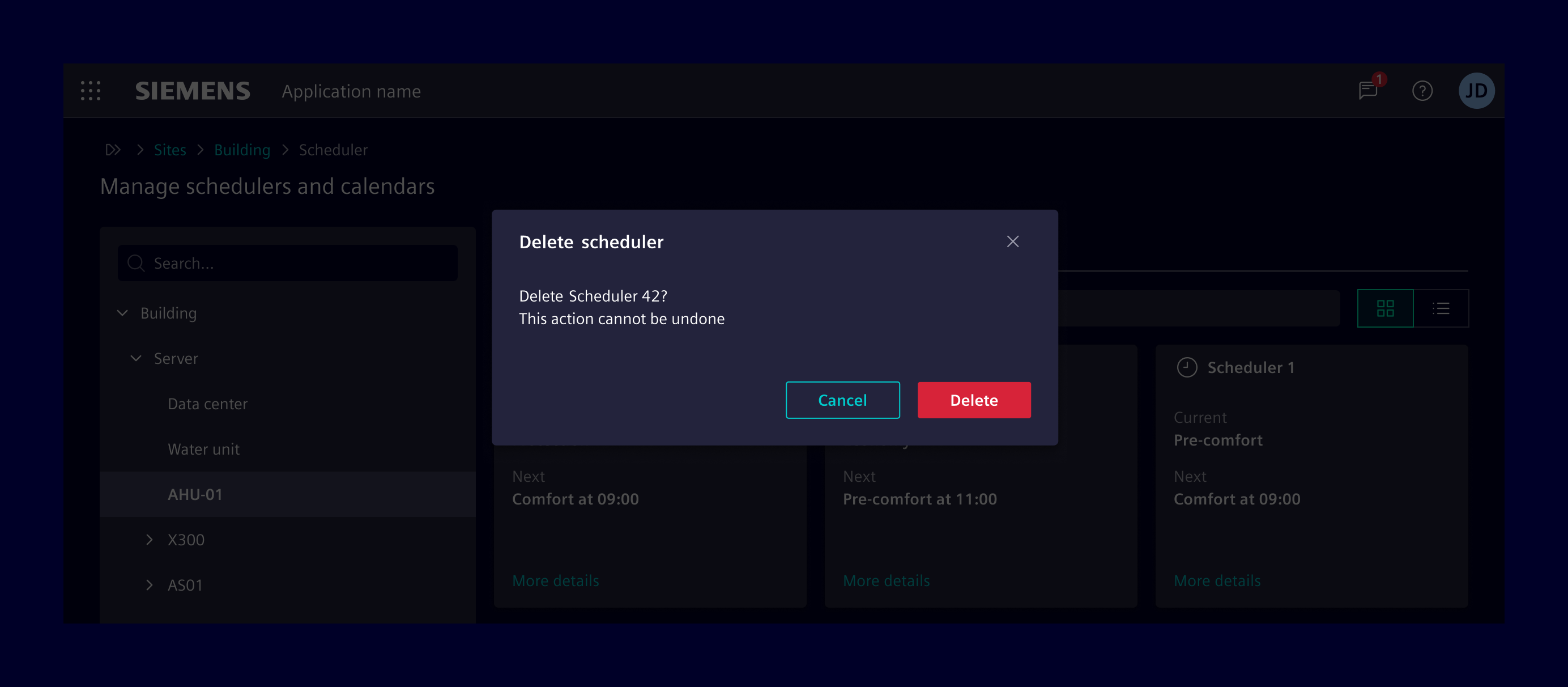

Modals are flexible dialog prompts which offer minimal required functionality and smart defaults. They block the parent window and force users to interact with the modal itself before allowing to continue the workflow.

Usage ---¶

When to use¶

• Use modals for guided interactions or showing additional details.
• Use it to interrupt a flow and to catch the user’s full attention.
• Use it to prompt a user to enter information crucial to continuing a process.

Best practices¶

• Use button texts which represent their intended action (e.g. use Delete instead of Yes on a delete confirmation dialog).
• Be mindful when to show the modal to avoid interrupting the user flow.
• Modals must always be used in combination with backdrop to provide visual focus on the active modal content.
• Don't use it for complex decision making that requires additional sources of information unavailable in the current context.
• Don't use it for nonessential information that is unrelated to the current user flow.

Design ---¶

Elements¶

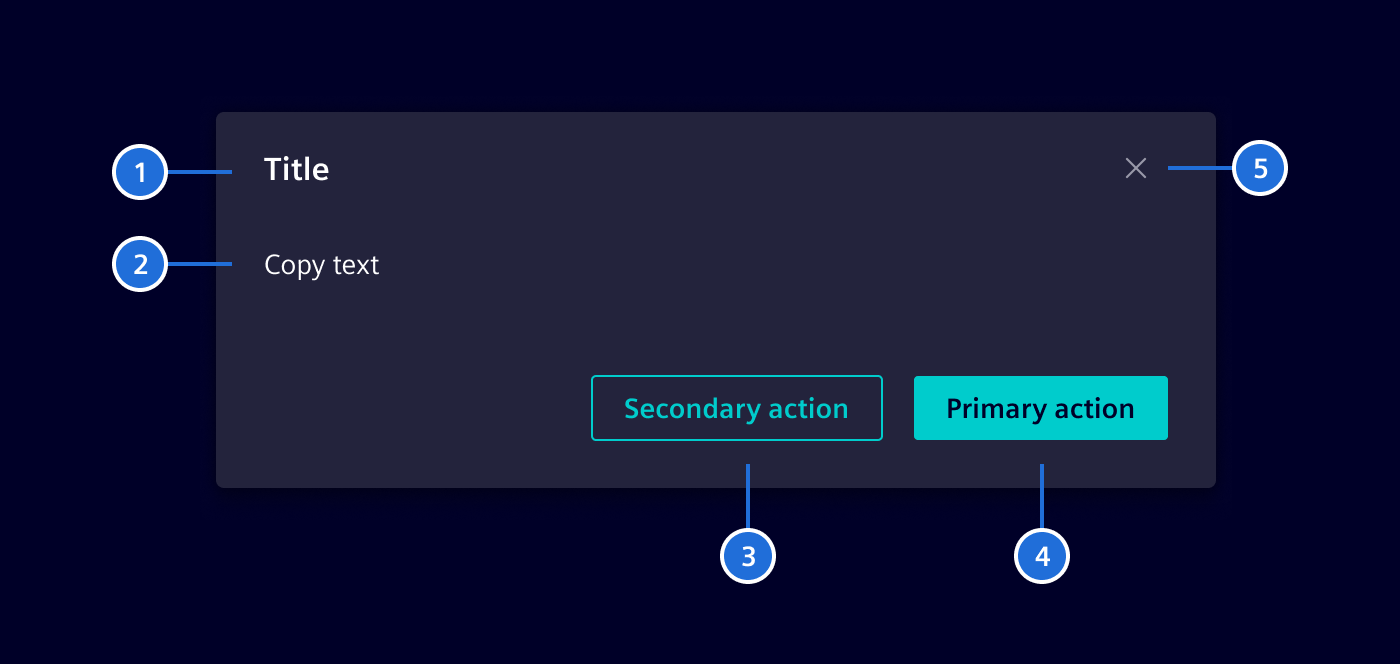

1. Title, 2. Content, 3. Secondary action (optional), 4. Primary action, 5. Cancel

Common modal types¶

Modals serve various purposes depending on the scenario. Common examples include:

• Transactional modals
  Used to collect or confirm user inputs, such as completing a form or setting preferences.

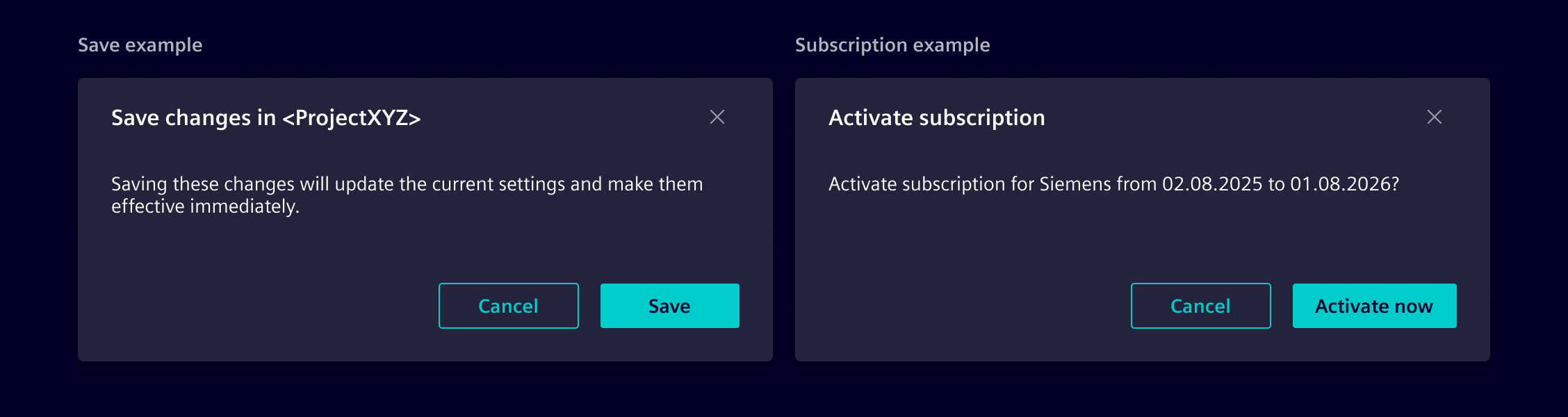

• Confirmation modals
  Ensure users explicitly approve an action, like saving or submitting data.

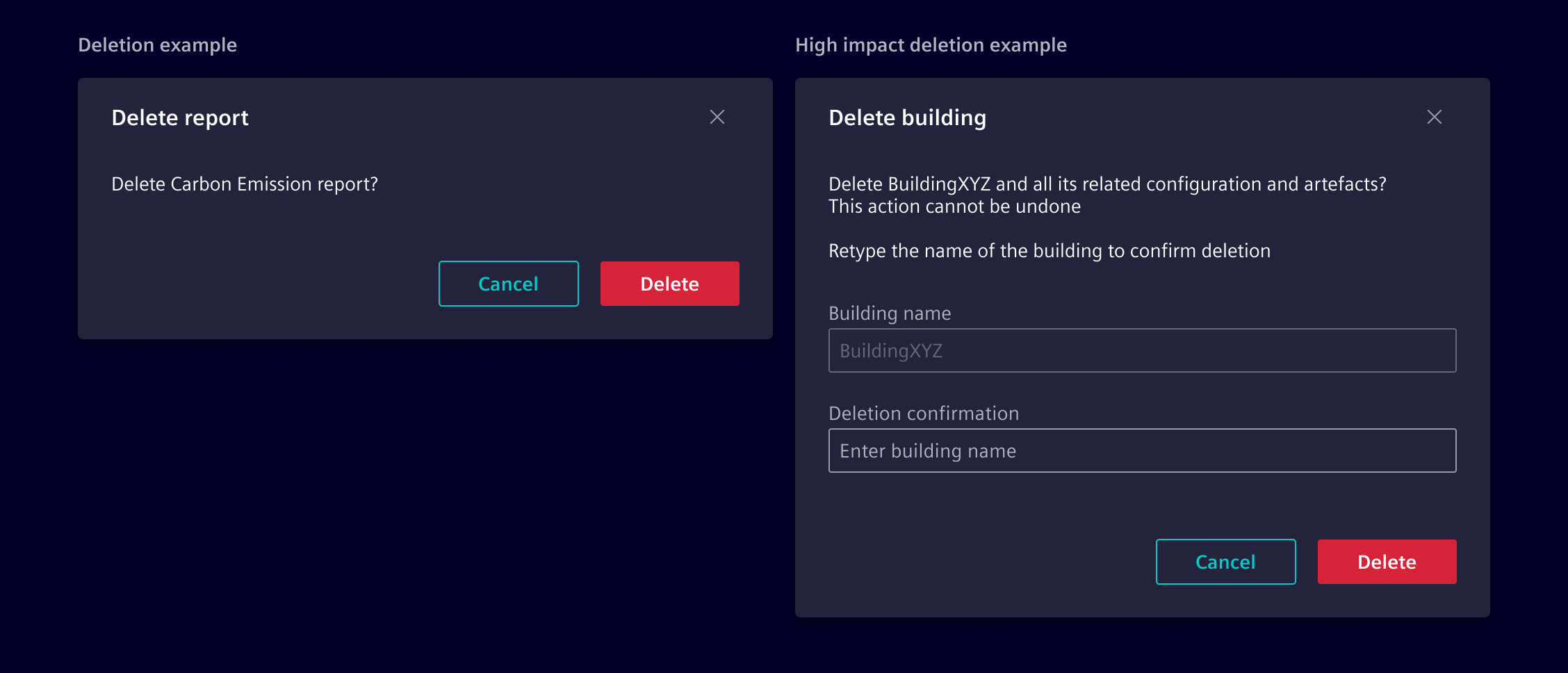

• Deletion modals
  They are used when the action cannot be undone or the data is hard to recreate. For high-impact deletions (e.g., deleting a site with months of work), explicit confirmation is required, with safeguards like typing the object’s name or enforcing a 4-eyes principle. Low-impact deletions, where data is easy to recreate, don’t require a modal.

Code ---¶

In Element modals are created with the SiModalService or alternatively with the SiActionDialogService for predefined modal dialogs.

Generic modals¶

To display a modal dialog in any component, you need to follow these steps:

• Import and inject the SiModalService in your component.
• Use the show method of SiModalService to display the modal. This method takes either the component or template you want to display in the modal.

import {viewChild} from "@angular/core";

@Component({
  template: `
    <ng-template #sampleModal>
     <div class="modal-header">
      <h4 class="modal-title">Modal</h4>
      <button
        type="button"
        class="btn btn-circle btn-sm btn-ghost element-cancel"
        aria-label="Close modal"
        (click)="modalRef.hide('cancel')"
      ></button>
    </div>
    <div class="modal-body">
      <span>This is the body.</span>
    </div>
    <div class="modal-footer">
      <span>This is the footer.</span>
      <button type="button" class="btn btn-secondary" (click)="modalRef.hide('close')">Close</button>
    </div>
  </ng-template>
  `
})
export class SampleComponent {
  private modalService = inject(SiModalService);
  private modal = viewChild.required<TemplateRef<void>>('sampleModal');
  private modalRef?: SiModalRef;


  openModal(): void {
    this.modalRef = this.modalService.show(template, { /* Options go here. */});
  }
}

Predefined modal dialogs¶

This section describes the general usage of the element modals.

Action dialog¶

Element provides the service SiActionDialogService. The service provides a method to display the modal dialogs for each dialog type. They offer mandatory and optional parameters to configure the dialogs and return an Observable with the user's result.

Alert dialog¶

Use the alert dialog to request the attention of the user to a certain event, which is so severe, that the normal use of the application is interrupted and the user needs to confirm to this alert. The result is just confirm, which indicates that the users took notice of the dialog.

Confirmation dialog¶

Use the confirmation dialog to request a yes-no or agree-disagree confirm-decline answer from the user. Default button labels are yes and no. Closing the dialog with the close button returns a decline.

Delete confirmation dialog¶

Use the delete confirmation dialog to request user confirmation before deleting any object.

Edit-discard dialog (unsaved data)¶

Use the edit-discard dialog when leaving or canceling a data form that was modified. User results are Save, Discard, or Cancel.

• Save: User still wants to save the changes. Save them and navigate away.
• Discard: Discard the changes and navigate away.
• Cancel: User is unsure and cancel leaving the form. Close the dialog and let the user further edit the form.

Column selection dialog¶

Use the SiColumnSelectionDialogService if you need a dialog to configure the column setup of a table.
