Badges¶

Badges act as visual aids notifying about a status of an object. They carry different type of content such as a label or a counter to reflect a status. Badges normally contain dynamic information.

Usage ---¶

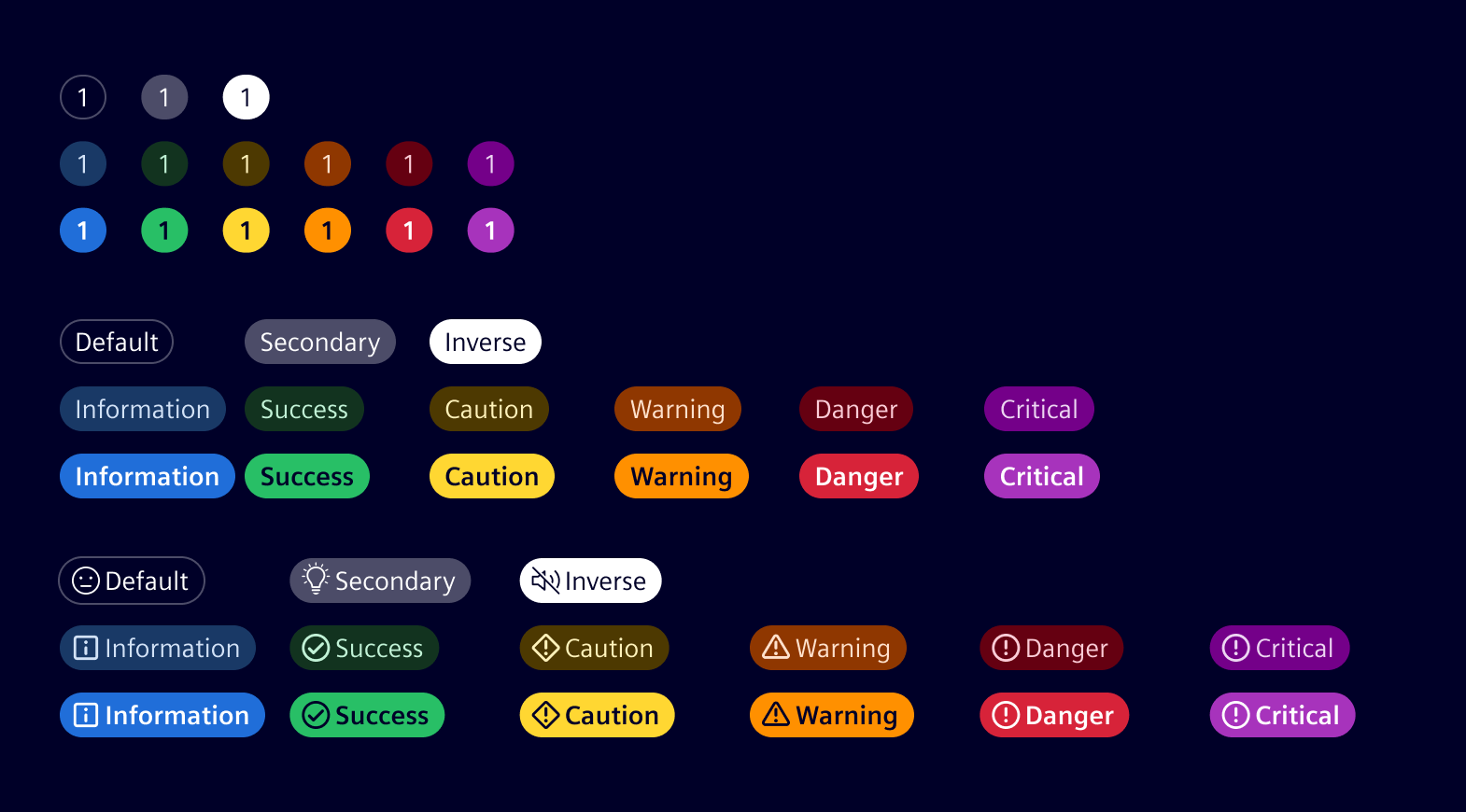

Pill badge¶

Badges can display text or numbers, and may also include an icon. Choose between two visual styles: Default or Emphasis.

• Pill badges with text are usually integrated inside the data-tables and depicts each row's recent status.
• Used in conjunction with a single item or row to avoid ambiguity about which item is indicated.
• Pill badges can extend the width to fit desired text or numbers.
• Pill badges can also be used to indicate new or unread items with numbers.
• In case of a counter, the maximum count should be limited to 2 digits plus 1 character. For example 99+.
• Status based categories are Default, Secondary, Inverse, Information, Success, Caution, Warning, Danger and Critical.

Best practices¶

• Consider the specified alignments while using Pill badges within the data-tables.
• Use status based categories to notify about a particular type of notification.
• Do not display status description in a badge.
• While showing a count, use integer numbers.
• If required, use tooltips for numbered badges to enhance user understanding.
• Place badges appropriately to identify the object they are informing or labelling.
• It is not recommended to use icons which are conflicting with semantic status color.

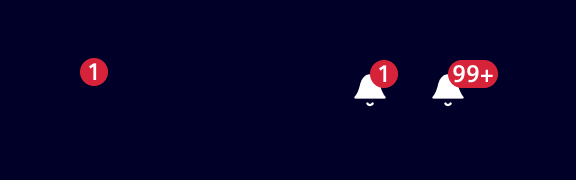

Red dot tag with count¶

• These are global badges conveying a count and not a status.
• Use these to provide a visual cue of an object by notifying the recent changes.
• Maximum character count should be limited to 3 characters, i.e 99+.

Best practices¶

• Use only natural numbers.
• Adjust the width to accommodate multiple digit numbers.
• Do not include text characters inside the badge.

Red dot tag¶

• The red dot symbolizes a global notification update.
• If there is no content inside badge it can be represented with a simple dot.

Best practices¶

• Do not completely overlap the icon.
• Must be properly aligned to the upper right of the bounding box of the icon.
• Do not position badge out of the parent bounding box.

Design ---¶

Color variations - table¶

Code ---¶

The Badges are implemented using the Bootstrap Badges as a base. In addition to the Bootstrap badges, we also provide badge-dotand badge-text classes to realize the smaller dots, typically placed at the side of an icon.

References¶

• Bootstrap: Badges

Example¶
