Layout anatomy

The layout anatomy describes the building blocks, areas and spacing of a page.

Usage ---

Building blocks

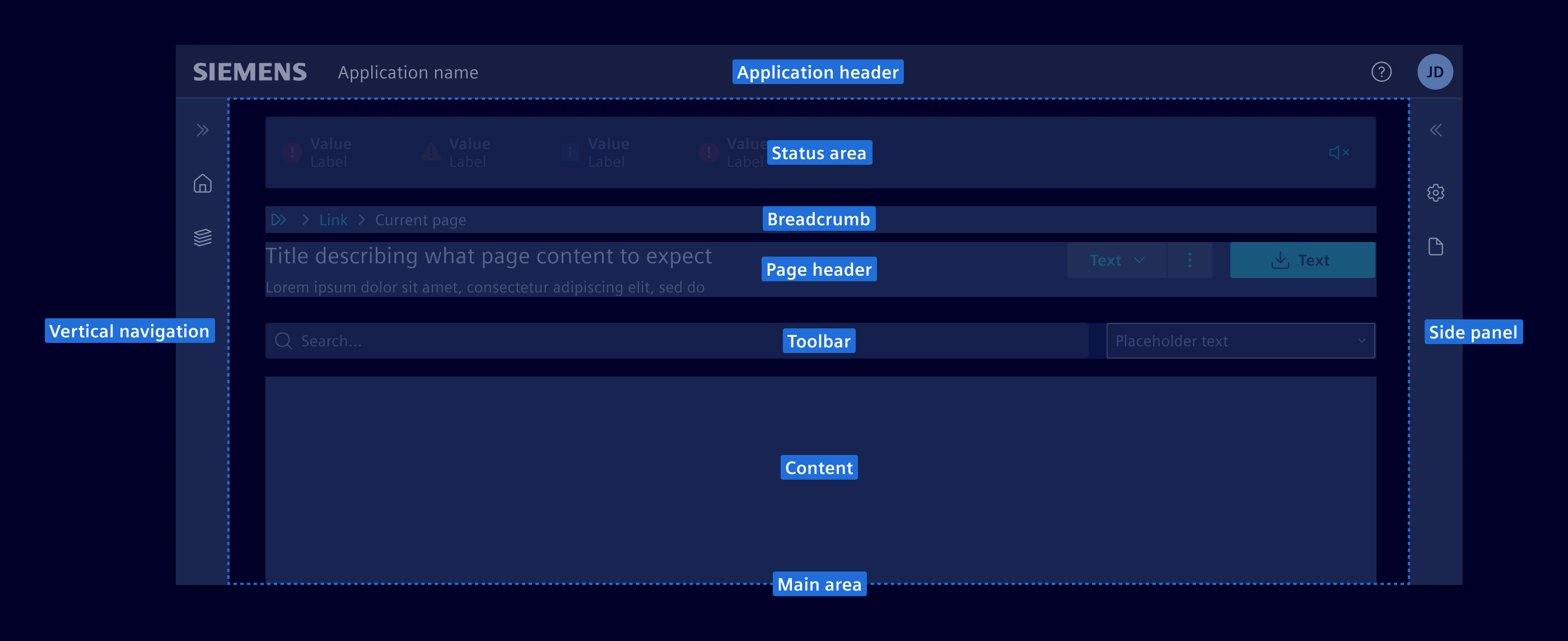

Layout anatomy

  • Application header: Is present in all screens. It can be used as the primary navigation and it contains system items such as user information, notifications, and more.
  • Vertical navigation: It can be used as primary or secondary navigation with from top to bottom on the left side of a screen.
  • Main area: Central area of the interface. Note, depending on the use case, the side panel may or may not belong to the main area.
  • Status area: Designated for status-related elements, such as status bar or inline notifications.
  • Breadcrumb area: Reserved for navigational aids like breadcrumbs.
  • Page header: It organizes elements that provide context to the current page, such as the title, description, and page-specific actions.
  • Toolbar area: This flexible area may contain tools that alter the page's content, including search functions, filters, or additional actions.
  • Content: Specific content of the page.
  • Side panel: Displays additional content or functionality that is related to the main content of a page and is specifically tailored to the current context or task.

Each of these elements is optional, with the exception of the horizontal navigation which is a mandatory feature. Only use elements that are really needed. E.g. a vertical navigation with only one item does not make sense.

Horizontal spacing

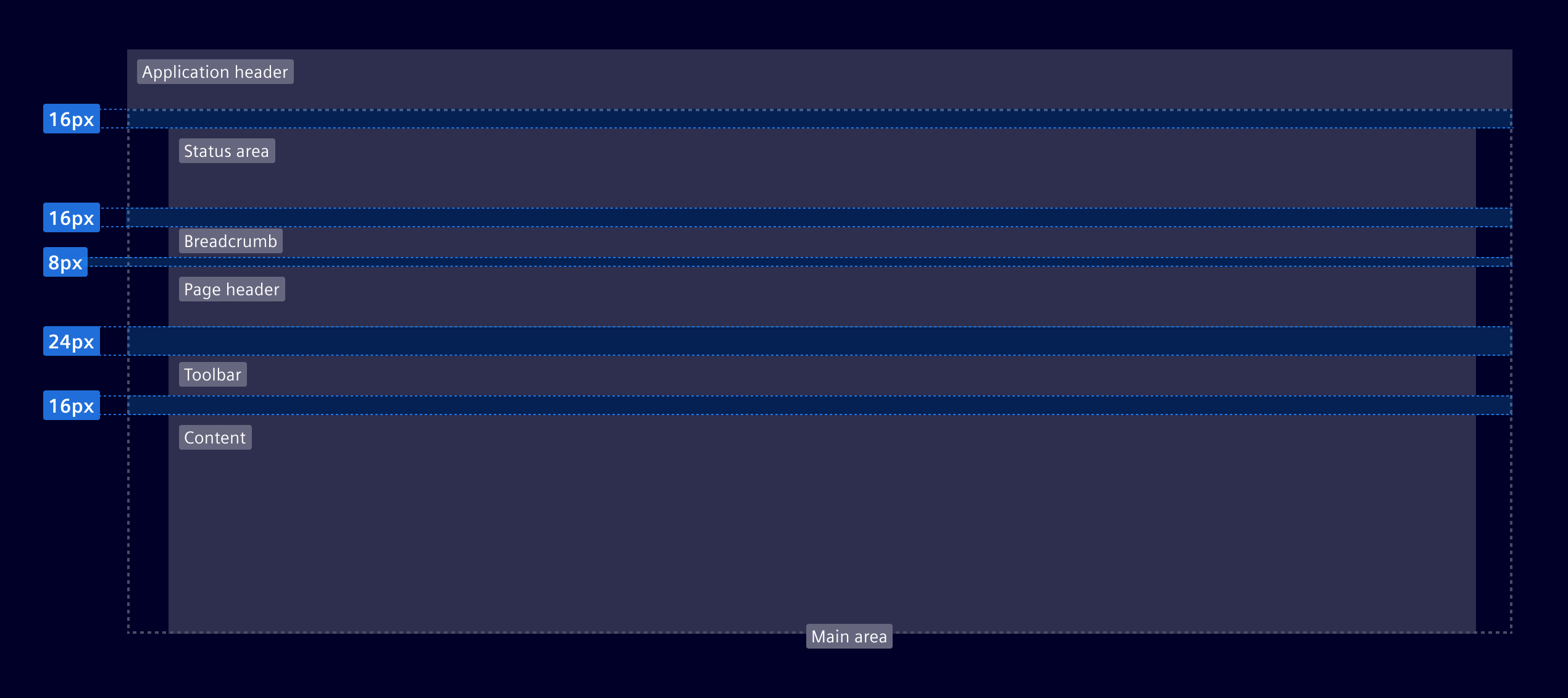

Layout horizontal spacing

Note, you should not use absolute pixel values for spacing. Element provides a grid system and many helper classes to set the corrected spacings.

Code ---

Element provides components and CSS layout classes to support building a page.

  • .si-layout-main-padding sets the padding of the main content
  • .si-layout-status should be used for status information as the <si-inline-notification> or the <si-status-bar>
  • .si-layout-breadcrumb should be used in combination with si-breadcrumb
  • .si-layout-header and related CSS classes are documented at Header
  • .si-layout-top-element marks the top element in the main area and adds extra space in the mobile viewport for the vertical navigation and the side panel.

If you have a toolbar, add 16px bottom margin to the content e.g. by adding the utility class .mb-6.

The CSS classes are responsive and will automatically reserve space for the vertical-navbar and the side-panel.
